Permavoid 400MD

INNOVATIVE SUSTAINABLE DRAINAGE PRODUCTS AND SOLUTIONS

Permavoid MD (PV400) structural cells are a water management solution designed for both stormwater quality and quantity. High-strength units capture large volumes of water and promote more natural stormwater behavior through infiltration, retention or detention.

Water quality is also enhanced within the system through patented Biomat filtration. The floating composite adsorbs hydrocarbons on the water's surface and allows microbes to naturally digest and eliminate the pollutant. Permavoid MD is suitable for many stormwater management applications ranging from high-speed, heavy duty traffic through landscape areas.

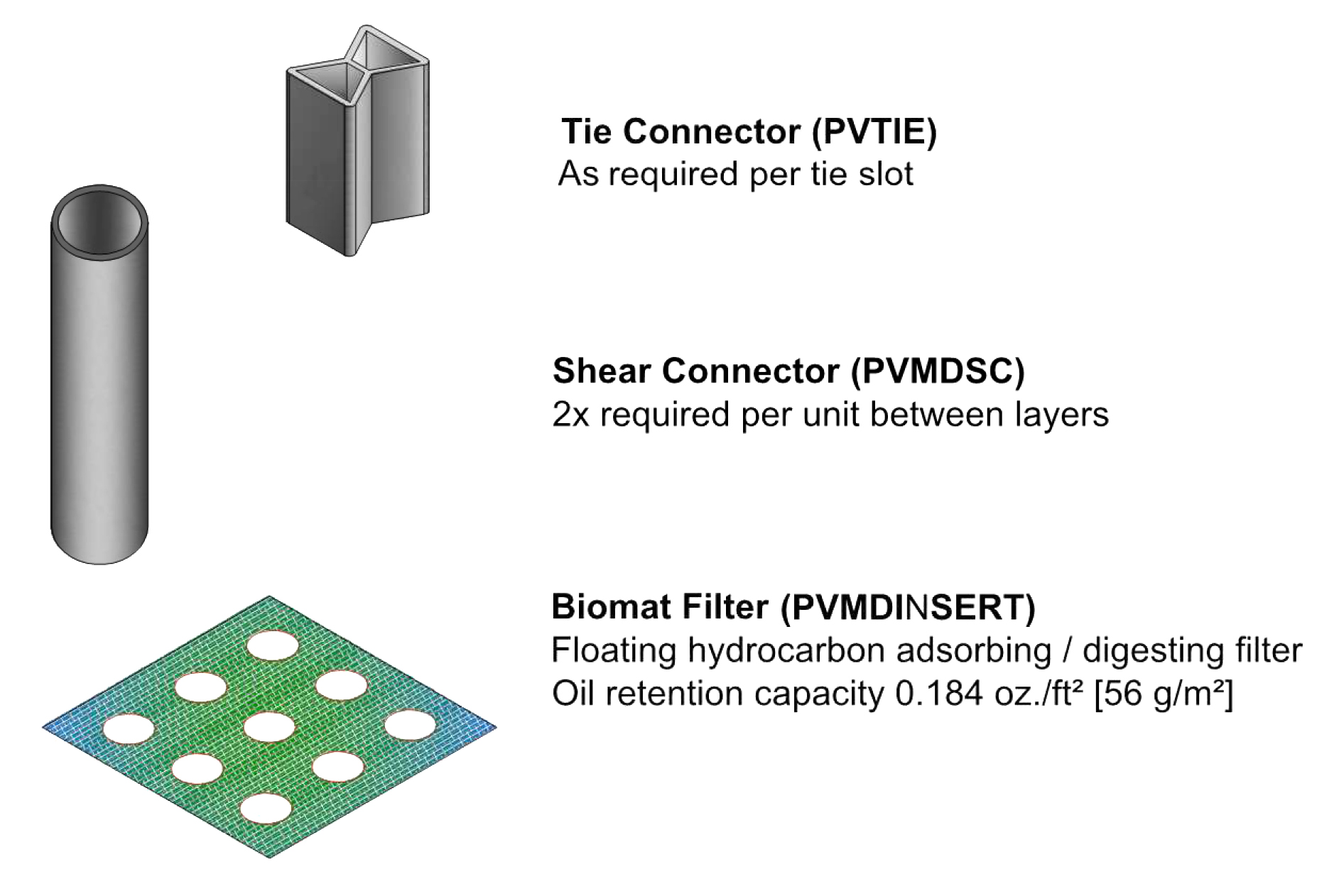

Accessories

Accessories

Geotextiles

The following are for guidance only. Refer to design documents for site specific requirements.

1. Non-woven fabric for separation and/or infiltration:
– Tencate – Mirafi 1100N (or approved equal)
2. Woven fabric for separation and/or infiltration:
– Tencate – Mirafi HP270 (or approved equal)
3. Waterproof Membrane Liner for retention and/or detention:
– 40 mil HDPE or LLDPE (or approved equal)

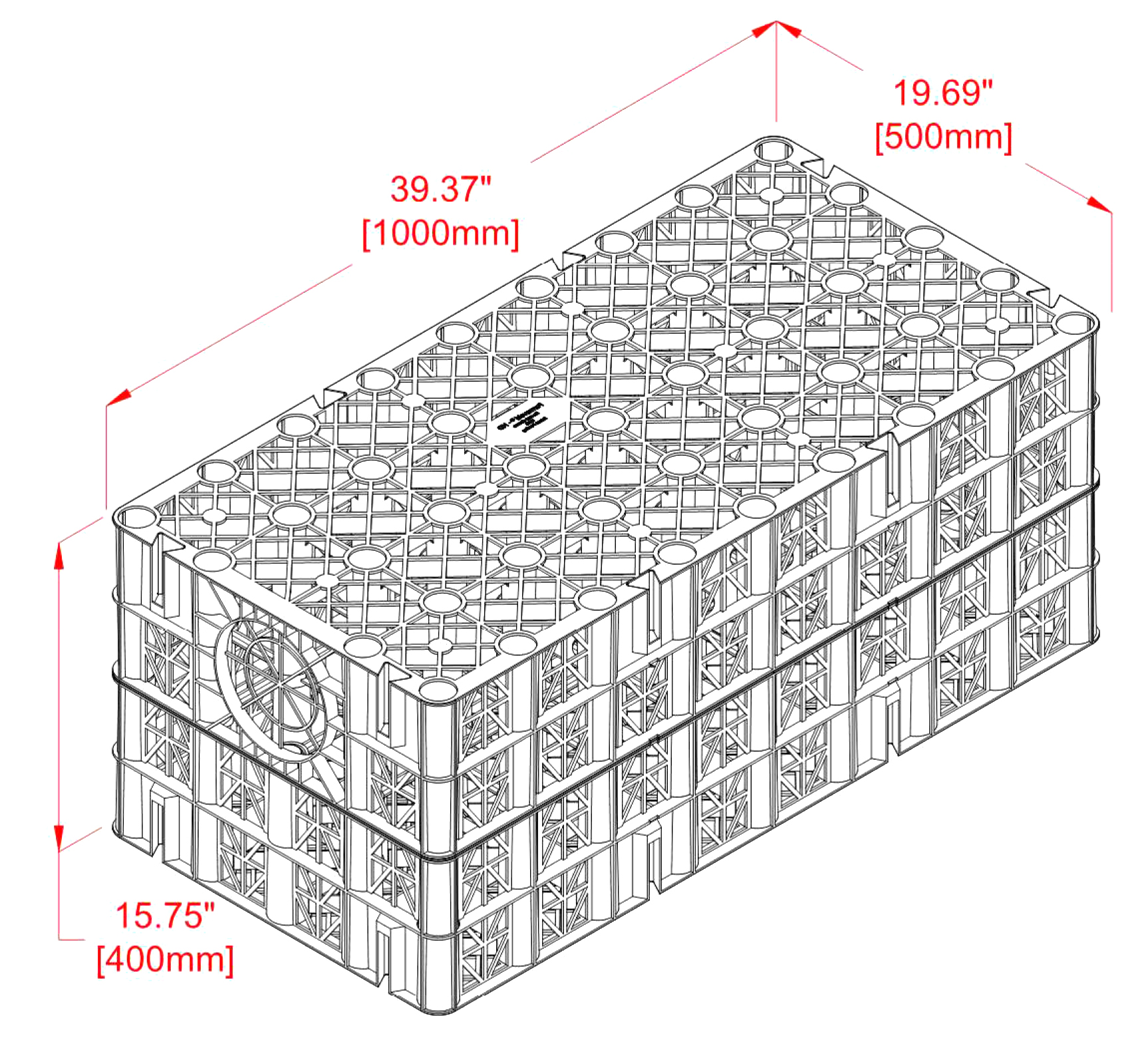

Physical Properties
Material Polypropylene
Weight per unit 21.49 lbs 9.75 kg
Length 39.37 in 1000 mm
Width 19.69 in 500 mm
Depth 15.75 in 400 mm
Area per unit 5.382 ft² 0.500 m²
Occupied volume per unit 7.063 ft³ 0.200 m³
Structural Properties
Vertical compressive yield 88.5 psi 610 kPa
Lateral compressive yield 9.1 psi 63 kPa
Vertical deflection strength 221 psi / in 60 kPa/mm
Lateral deflection strength 16.2 psi / in 4.4 kPa/mm
Vertical creep limit (60 year) 23.5 psi 162 kPa
Lateral creep limit (60 year) 4.5 psi 30.9 kPa
Hydraulic Properties
Average perforated surface area 55%
Volumetric void ratio 95%
Void volume per unit 6.710 ft³ 0.190 m³
Other Properties
Recycled content 100%
Recyclability 100%
Country of origin United States of America
