Pre-Sloped Trench Drain Systems

The Standard for Pre-Engineered Trench Drains

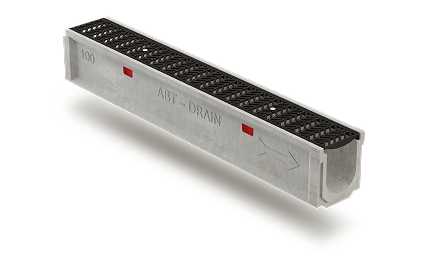

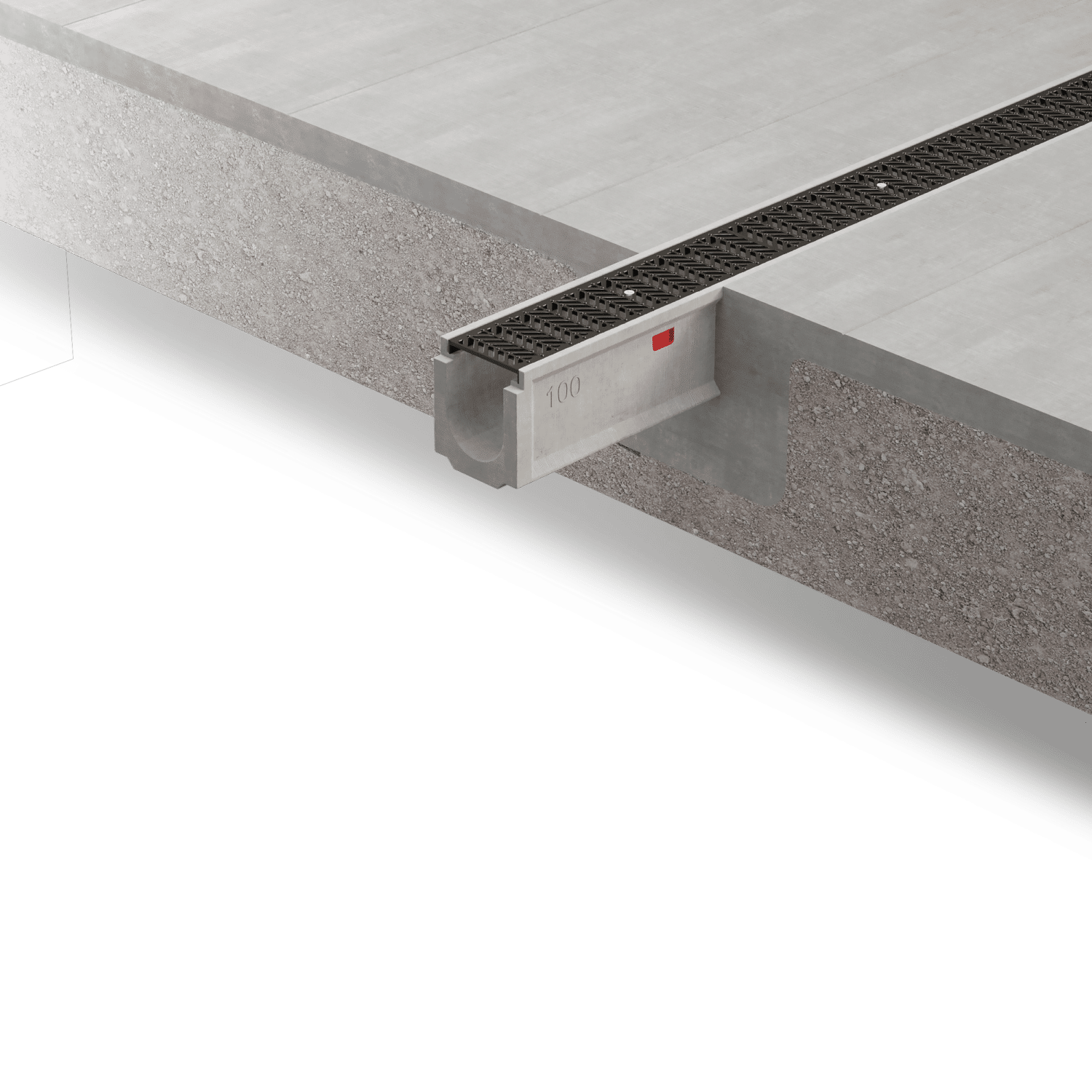

PolyDrain® is a drainage channel made in modular, pre-sloped sections from polymer concrete. Combine the interlocking sections to create runs of almost any configuration and length. In addition to its versatility, with precision pre-casting, you get a high-quality product that requires less onsite labor.

Replace site-built drainage products with factory-built performance, consistency, and reliability.

Polydrain
PolyLock Inserts Longitudinal Anchor Joint PolyLock Retention Grate and Cover Choice Numeric Labeling Directional Arrow Interlocking Joints Polymer Concrete Sloping Radius Bottom

PolyLock Inserts

Vibration dampening inserts help keep grates secure under load conditions.  PolyDrain channels feature RedDot polyethylene or GreenDot polypropylene inserts.

Longitudinal Anchor Joint

The full-length keyway joint mechanically anchors the channel to the surrounding concrete encasement.

PolyLock Retention

Locking devices are recommended for all applications with loading requirements greater than residential and pedestrian traffic or where vandalism may be an issue.

Grate and Cover Choice

We offer a wide selection of grate options to meet any of your design aesthetic and structural load requirements.

Numeric Labeling

PolyDrain channels feature cast numeric labels to make installation easy and simple.

Directional Arrow

PolyDrain channels feature cast directional arrows to indicate the direction of water flow and ensure proper layout and installation.

Interlocking Joints

Interlocking tongue and groove joints aid positive alignment and provide a tighter joint.

Polymer Concrete

All PolyDrain channels are available in two polymer concrete formulations. Both offer superior strength and durability over alternative materials. All PolyDrain Polyester channels are UL classified.

Sloping Radius Bottom

PolyDrain channels have a built-in 0.6% slope and smooth radius bottom.

Important Issues

NFPA requires nonflammable trench drains

Life Saftey Choice

Selecting a fire-resistant non-sloped or pre-sloped trench drain system should be common practice for any interior application.  Trench Drains are often the collection points for flammable fluids and heavier-than-air vapors.  As a result, even empty trenches can act as a pathway for flame spread.  For more info, see our Flame and Smoke page.


PolyDrain Trench Drain System

The PolyDrain polymer concrete trench drain system is well suited to a wide variety of surface drainage applications. The ABT PolyDrain precast trench drain system provides modular design flexibility, facilitates construction accuracy, requires less installation labor and skill, and has lower installed cost when compared to conventional hand-formed cast-in-place methods of creating trench drains.

PolyDrain polymer concrete non-sloped or pre-sloped trench drain system components have superior chemical resistance, greater strength, lower water absorption, and better freeze/thaw resistance than does Portland cement concrete. Polymer concrete is not degraded by salt, oil, most acids and alkalis, and offers UV resistance. These polymer concrete properties make ABT PolyDrain trench drains excellent for capturing, containing, and transporting surface runoff in any drainage application.

The standard 4 Inch (100mm) PolyDrain trench drain system contains both pre-sloped and non-sloped drain channels, grates, frames, catch basins, channel end plates, installation aids, and all other trench drain components to provide a complete precast channel drain solution.

By virtue of a smooth interior finish, radius bottom, and built-in 0.6% slope, flow velocities of 1 meter/second (3.5 feet/second) are attained inside ABT PolyDrain trench drain channels even in flat grade conditions. The higher hydraulic flow velocity and smooth surface reduces debris build-up in the precast polymer concrete drain channels in comparison to cast-in-place trench drain construction.

Also included in the PolyDrain precast trench drain system are Special Products for liquid containment applications, utility trenches, and limited-space installations. The PolyDrain system provides an optimized solution for any application.

The PolyDrain precast trench drain system is manufactured by ABT Inc., the industry leader in modular drainage systems for commercial and industrial use.



PolyDrain System Drawings

Description
Units
Details (.dwg)

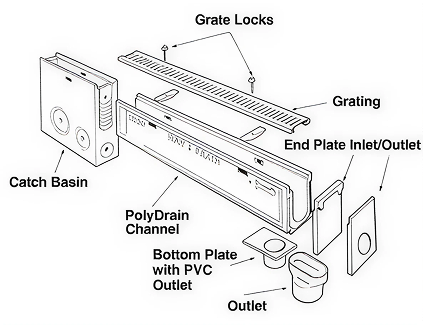

PolyDrain System Components Schematic
English Units (inch)
PolyDrain System Components Schematic
Metric Units
Grate Details and Specifications

Solid Cover Steel - Ductile Iron Grates

ImagePart NumberAdditional InfoDocuments
2501Load Class: G
Material: Ductile Iron - Black Polymer
Length (in): 19.6
Locking Device: 811B
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Perforated Heel-Safe Grates

ImagePart NumberAdditional InfoDocuments
2410 / 2411Load Class: A
Material: Galv. Steel
Length (in): 39.2/19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2452 / 2453Load Class: A
Material: Stainless Steel
Length (in): 39.2/19.6
Locking Device: 840A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2486 / 2487Load Class: B
Material: Brass
Length (in): 39.2/19.6
Locking Device: 892A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Reinforced Perforated Heel-Safe Grates

ImagePart NumberAdditional InfoDocuments
2412 / 2413Load Class: C
Material: Galv. Steel
Length (in): 39.2/19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2412.19 / 2413.10Load Class: D
Material: Galv. Steel
Length (in): 39.2/19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2454 / 2455Load Class: C
Material: Stainless Steel
Length (in): 39.2/19.6
Locking Device: 840A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2454.19 / 2455.10Load Class: D
Material: Stainless Steel
Length (in): 39.2/19.6
Locking Device: 840A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Slotted Steel Grates

ImagePart NumberAdditional InfoDocuments
2420 / 2421Load Class: B
Material: Galv. Steel
Length (in): 39.2/19.6
Locking Device: 811A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2440 / 2441Load Class: B
Material: Stainless Steel
Length (in): 39.2/19.6
Locking Device: 841A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Reinforced Slotted Steel Grates

ImagePart NumberAdditional InfoDocuments
2422 / 2423Load Class: C
Material: Galv. Steel
Length (in): 39.2/19.6
Locking Device: 811A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2422.19 / 2423.10Load Class: D
Material: Galv. Steel
Length (in): 39.2/19.6
Locking Device: 811A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2442 / 2443Load Class: C
Material: Stainless Steel
Length (in): 39.2/19.6
Locking Device: 841A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2442.19 / 2443.10Load Class: D
Material: Stainless Steel
Length (in): 39.2/19.6
Locking Device: 841A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Ductile Iron Slotted Grates

ImagePart NumberAdditional InfoDocuments
2502Load Class: E
Material: Ductile Iron - Black Polymer
Length (in): 19.6
Locking Device: 811B
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2504Load Class: E
Material: Ductile Iron - Black Polymer
Length (in): 19.6
Locking Device: 811B
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Ornamental Ductile Iron Slotted Grates

ImagePart NumberAdditional InfoDocuments
2506Load Class: E
Material: Ductile Iron - Black Polymer
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509 “Imperial Star”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509A “Maze / Meander”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509B “River Wave”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509C “Incan Myth”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509D “Rain Drops”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509E “Fern”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509F “Picasso”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509G “Smooth Stones”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

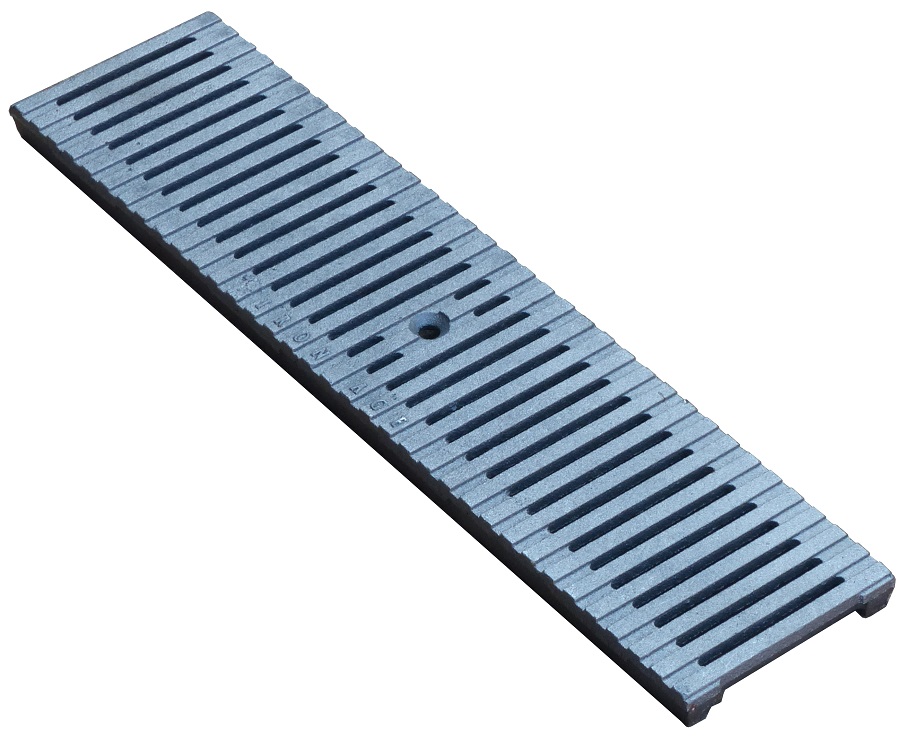

2509H “Regular Joe Heel Safe”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

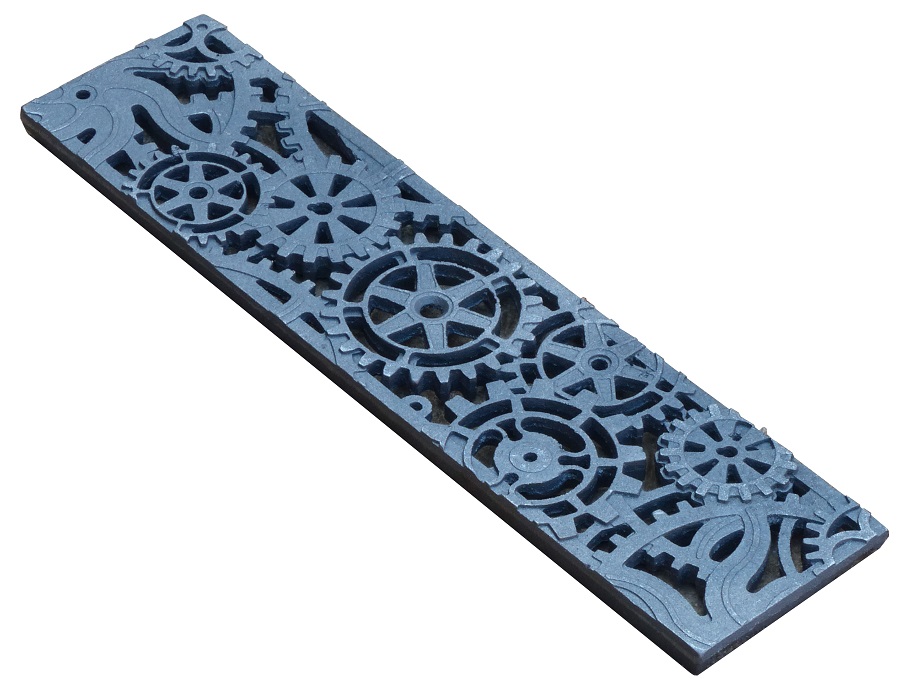

2509J “Gears”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

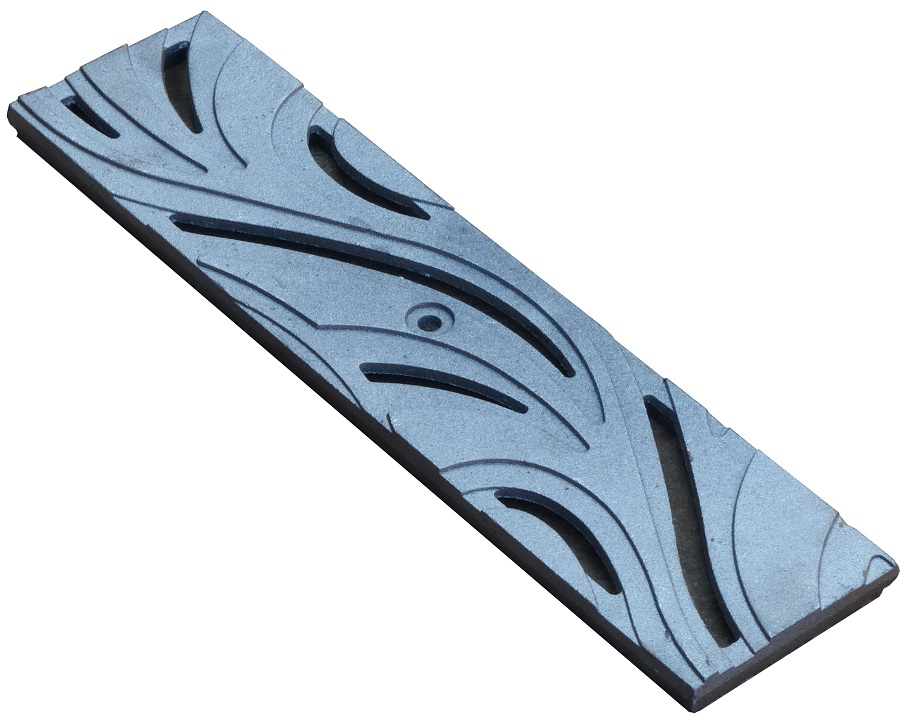

2509L “Ocean Current”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2509P “Regular Joe”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810A
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Ornamental Ductile Iron Slotted Grates with Frame

ImagePart NumberAdditional InfoDocuments
2516Load Class: E
Material: Ductile Iron - Black Polymer
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519 “Imperial Star”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519A “Maze / Meander”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519B “River Wave”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519C “Incan Myth”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519D “Rain Drops”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc

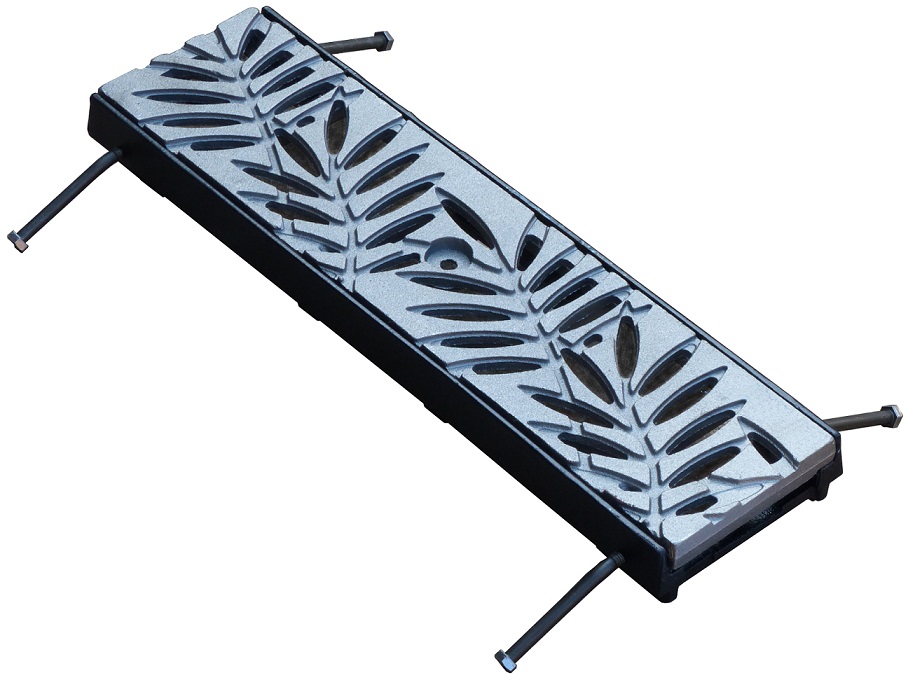

2519E “Fern”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519F “Picasso”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc

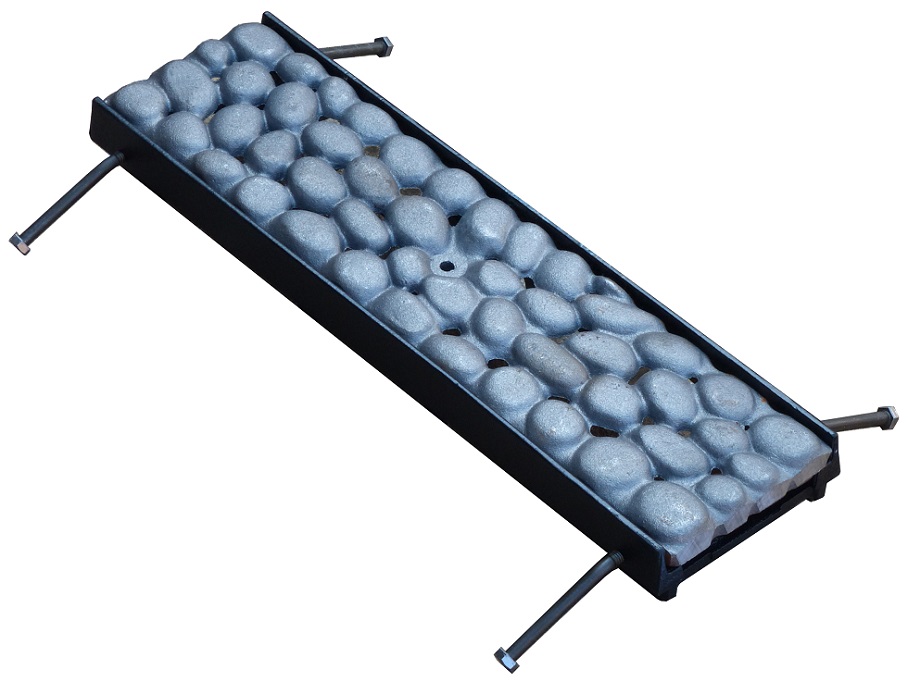

2519G “Smooth Stones”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc

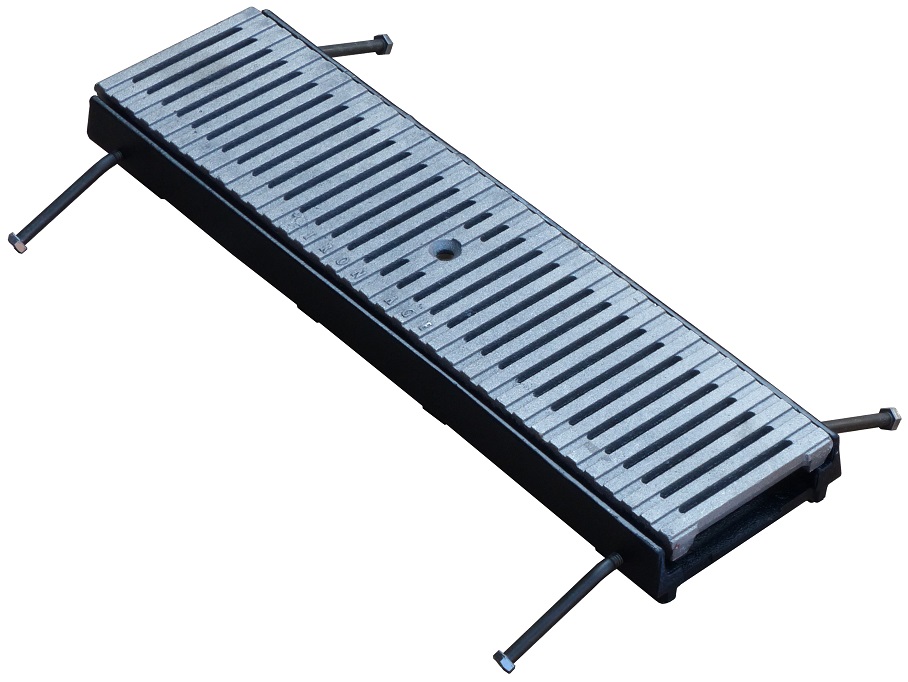

2519H “Regular Joe Heel Safe”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc

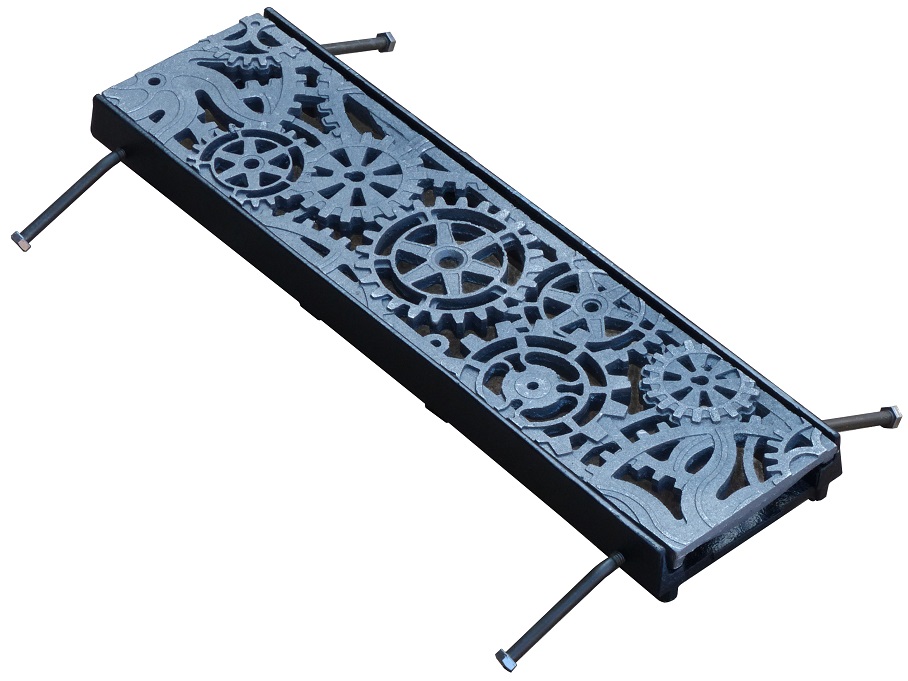

2519J “Gears”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc

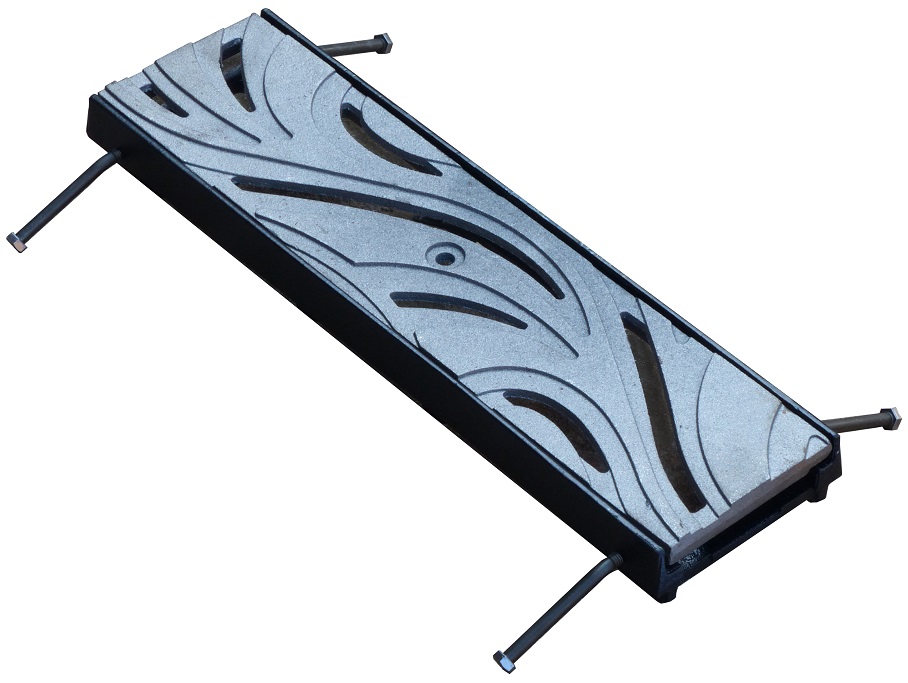

2519L “Ocean Current”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2519P “Regular Joe”Load Class: D
Material: Ductile Iron
Length (in): 19.6
Locking Device: 810AXL
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Ductile Iron Grates With Anchor Frame

ImagePart NumberAdditional InfoDocuments
2512Load Class: E
Material: Ductile Iron
Length (in): 19.6
Locking Device: 815B
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2514Load Class: E
Material: Ductile Iron
Length (in): 19.6
Locking Device: 815B
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Transportation Series – 500 Series Grates

ImagePart NumberAdditional InfoDocuments
2542Load Class: E
Material: Ductile Iron
Length (in): 19.6
Locking Device: Integrated
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2552Load Class: E
Material: Ductile Iron
Length (in): 19.6
Locking Device: Integrated
Please use 2542 documents
2564Load Class: E
Material: Ductile Iron
Length (in): 19.6
Locking Device: Non-Removable
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2532BLoad Class: G
Material: Ductile Iron
Length (in): 19.6
Locking Device: Integrated
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Heavy Duty Industrial Stainless Steel Grates

ImagePart NumberAdditional InfoDocuments
2468 Grate OnlyLoad Class: D
Material: Stainless Steel
Length (in): 19.6
Locking Device: 468.SSHD
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Fiberglass Grates

ImagePart NumberAdditional InfoDocuments
2720 / 2721Load Class: B
Material: Vinylester FRP
Length (in): 39.2/19.6
Locking Device: 887
Detail Sheet:
pdf pdf
Spec Sheet:
doc
2722 / 2723Load Class: D
Material: Vinylester FRP
Length (in): 39.2/19.6
Locking Device: 887
Detail Sheet:
pdf pdf
Spec Sheet:
doc

Thermoplastic Grates

ImagePart NumberAdditional InfoDocuments
2336Load Class: A
Material: Thermoplastic
Length (in): 19.6
Locking Device: 840.25A
Detail Sheet:
pdf pdf
Spec Sheet:
doc
PolyDrain Accessories

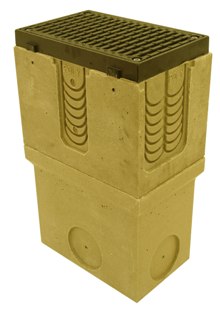

Catch Basins

ImagePart NumberAdditional InfoDocuments
2900Notes:
Up to 15″ pipe connection
Supports sidewall extensions

Optional Items:
Galvanized Trash Bucket
Stainless Steel Trash Bucket
Filtration Sock
Detail Sheet:
pdf pdf
2902Notes: 2900 Catch Basin with Foul Air Trap
2903
Material: Galv. Steel
2904Material: Stainless Steel
2610Detail Sheet:
pdf pdf
Spec Sheet:
doc
2611Detail Sheet:
pdf pdf
Spec Sheet:
doc
2605Inset: 2610 Catch Basin
Material: Galv. Steel
2607Inset: 2611 Catch Basin
Material: Galv. Steel
2608Inset: 2610 Catch Basin
Material: Stainless Steel
2609Inset: 2611 Catch Basin
Material: Stainless Steel

Inlets, Outlets, and Endcaps

ImagePart NumberAdditional InfoDocuments
Horizontal Outlets:4" SDR 35
4" SCH 40
6" SDR 35
End Caps:all channel sizes available
Vertical Outlets:4" PVC
4" Ductile
6" PVC
8" PVCInstallation Instructions:
pdf
12" PVCInstallation Instructions:
pdf

Overlay Rails

ImagePart NumberAdditional InfoDocuments

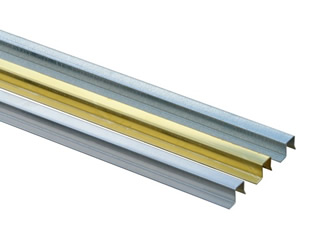

2459GMaterial: Galv. Steel
2459Material: Stainless Steel
2459BMaterial: Brass

Sidewall Extensions

ImagePart NumberAdditional InfoDocuments
2301Notes:
7" height
30 Meter continuous slope extension
2381Notes:
14" height
60 Meter continuous slope extension (when combined with 2301 sidewalls)

Installation Devices

ImagePart NumberAdditional InfoDocuments
2224Notes: Requires two rebar stakes (not included)
2224.2Notes:
Optional Story Pole Available
Requires two rebar stakes (not included)
Installation Instructions:
pdf

PolySeal Adhesive-Sealants

ImagePart NumberAdditional InfoDocuments
3233Material: Polyurethane
Notes: General purpose sealant formulated for PolyDrain® channels
3234-04Material: Two-Part Epoxy
Notes:
Permanently Flexible
Requires Dual Cartridge Caulk Gun
Static mixing tube included
3235Dual Cartridge Caulk Gun
3236Additional Nozzle for Polyseal 4 or 5

Maintenance Items

ImagePart NumberAdditional InfoDocuments
PJ306KIdeal For:
Veterinary Clinics and Kennels
High Silt and Debris Areas
Installation Instructions:
pdf
2231Notes:
Shovel conforms to PolyDrain® channel radius
Fits Standard Shovel Replacement Handle (not included)
2553Notes:
Covers grates during installation to keep system clean
100 ft per roll
